Products > AC/DC > Programmable power supply

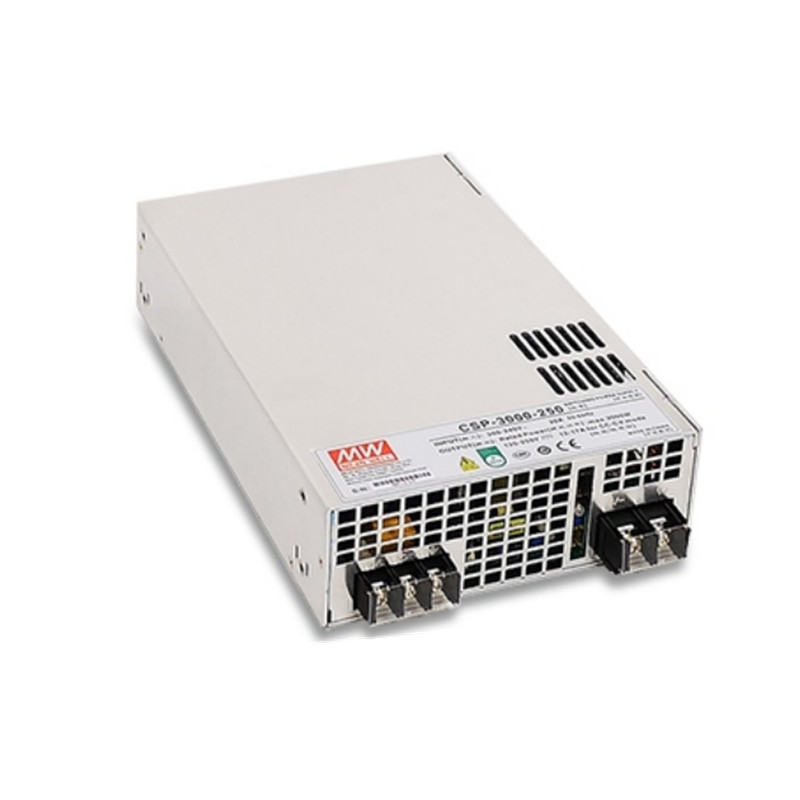

CSP-3000

CSP-3000
Wattage:
3000W
Function Characteristics

Full range 180~264VAC input

Built-in active PFC function

High efficiency up to 93%

Built-in DC fans for forced air cooling

Output voltage/current programmable

Active current sharing up to 9000W(2+1)

Built-in remote ON/OFF control /  Auxiliary power / power OK signal

Protections: short circuit/over current/over voltage/over temperature/ fan failure

5 years warranty

Model information
Model:
CSP-3000-spec / CSP-3000-120 / CSP-3000-250 / CSP-3000-400 / UL Certificate_62368 / DEKRA Certificate / EAC Certificate / CB Certificate_2nd_62368 / CB Certificate_3nd_62368 / EMC Certificate / CE Declaration / UK Declaration / CQC Certificate / CSP-3000-3D /

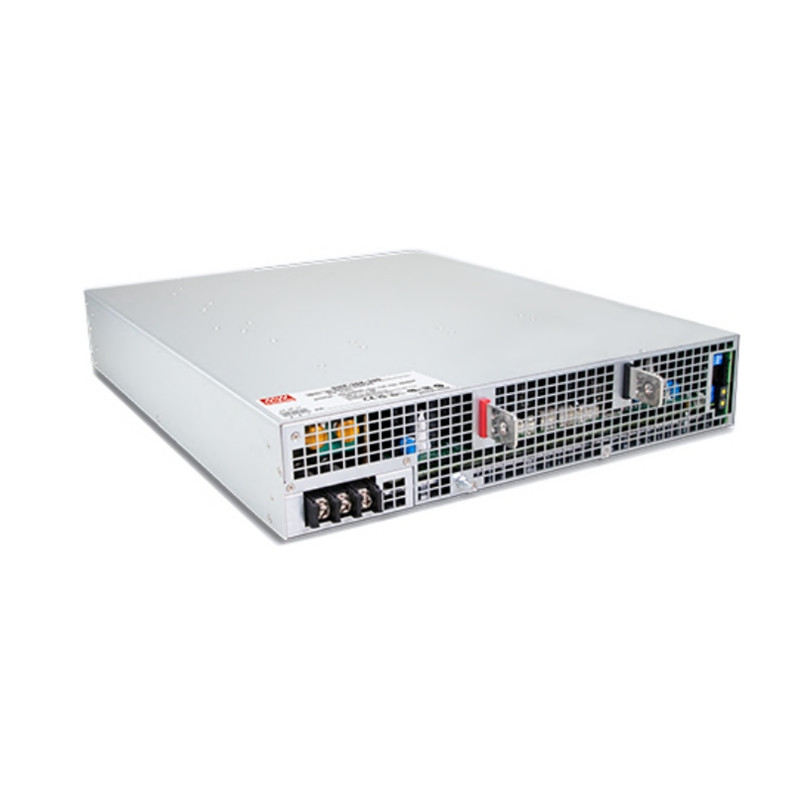

SHP-30K-HV

SHP-30K-HV
Wattage:
10000W~30000W
Function Characteristics

3ψ 3-wire without neutral / 340~530VAC wide input range

Water / forced air cooling selectable

Built-in CANBus/Optional PMBus protocol/MODBus-RTU/RS-485

Output voltage and constant current level programmable

Active current sharing up to 4 units

Built-in remote ON-OFF control / Auxilary power / Alarm signal

5 years warranty

Model information
Model:
SHP-30K-55 / SHP-30K-115 / SHP-30K-230 / SHP-30K-380 / UL Certificate_62368 / TUV Certificate_3nd / EAC Certificate / CB Certificate_2nd / CB Certificate_3nd / EMC Certificate / CE Declaration / UK Declaration / SHP-30K-HV-3D /

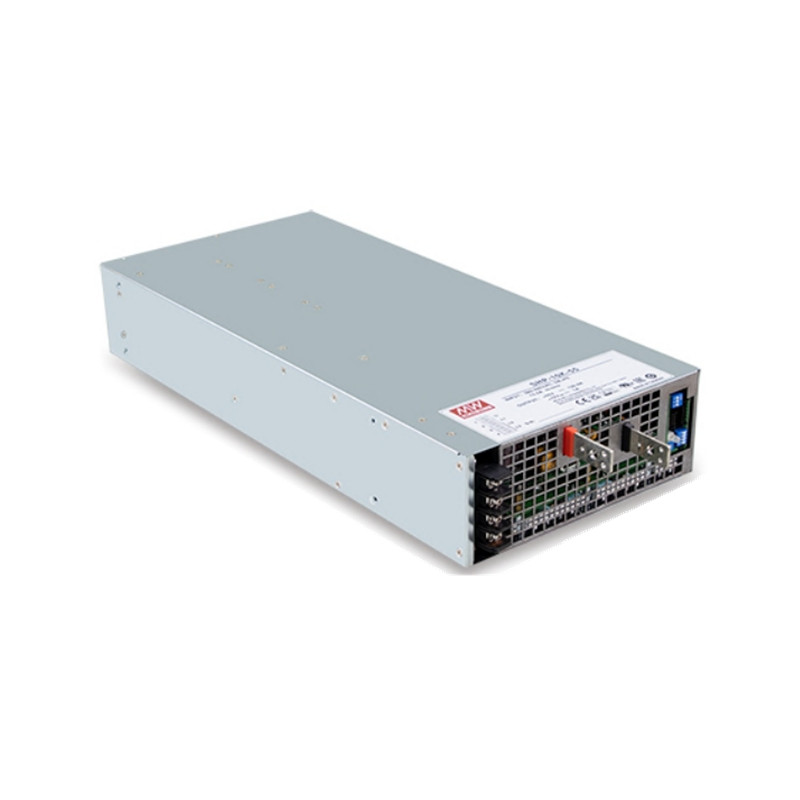

SHP-10K-HV

SHP-10K-HV
Wattage:
10000W~30000W
Function Characteristics

3ψ 3-wire without neutral / 340~530VAC wide input range

Water / forced air cooling selectable

Built-in CANBus/Optional PMBus protocol/MODBus-RTU/RS-485

Output voltage and constant current level programmable

Active current sharing up to 4 units

Built-in remote ON-OFF control / Auxilary power / Alarm signal

5 years warranty

Model information
Model:
SHP-10K-HV-spec / SHP-10K-55 / SHP-10K-115 / SHP-10K-230 / SHP-10K-380 / UL Certificate / TUV Certificate_3nd / EAC Certificate / CB Certificate_3nd / CB Certificate_2nd / EMC Certificate / CE Declaration / UK Declaration / SHP-10K-3D /
