Products > DC/DC > Built in guide rail Shell Type

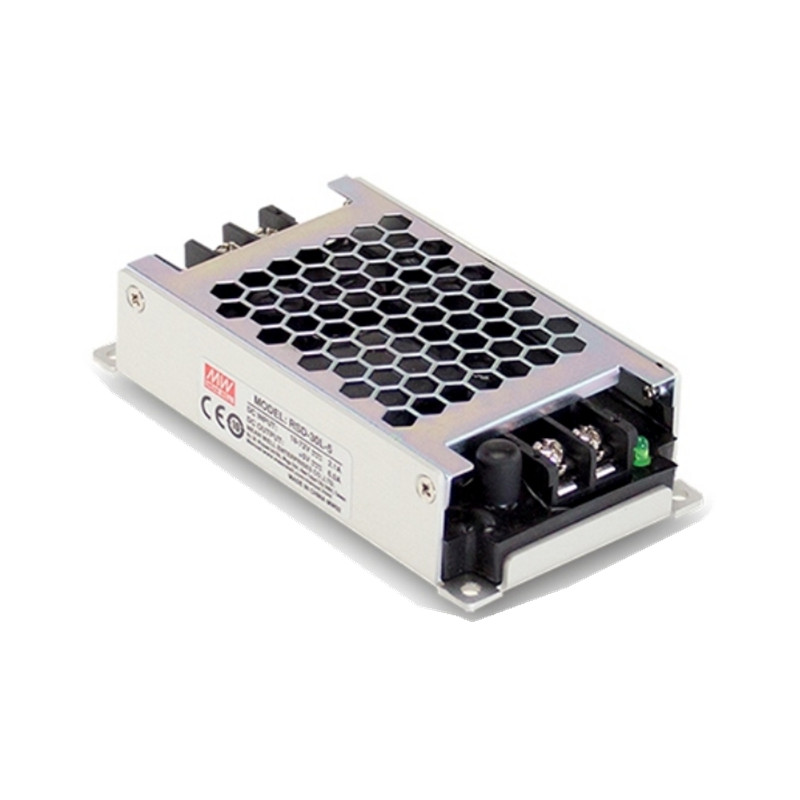

RSD-30

RSD-30
Wattage:
30W~500W
Function Characteristics

Compliance with EN50155 and EN45545-2 railway standard

2:1 or 4:1 wide input range

Isolation: 4000VDC

1U low profile

Half encapsulated

Model information
Model:
RSD-30-spec / RSD-30G-3.3 / RSD-30G-5 / RSD-30G-12 / RSD-30G-24 / RSD-30H-3.3 / RSD-30H-5 / RSD-30H-12 / RSD-30H-24 / RSD-30L-3.3-rpt / RSD-30L-5 / RSD-30L-12 / RSD-30L-24 / Railway Certificate / CB Certificate_UL / UL Certificate_62368 / EMC Certificate / CE Declaration / UK Declaration / EAC Certificate / RSD-30-3D /

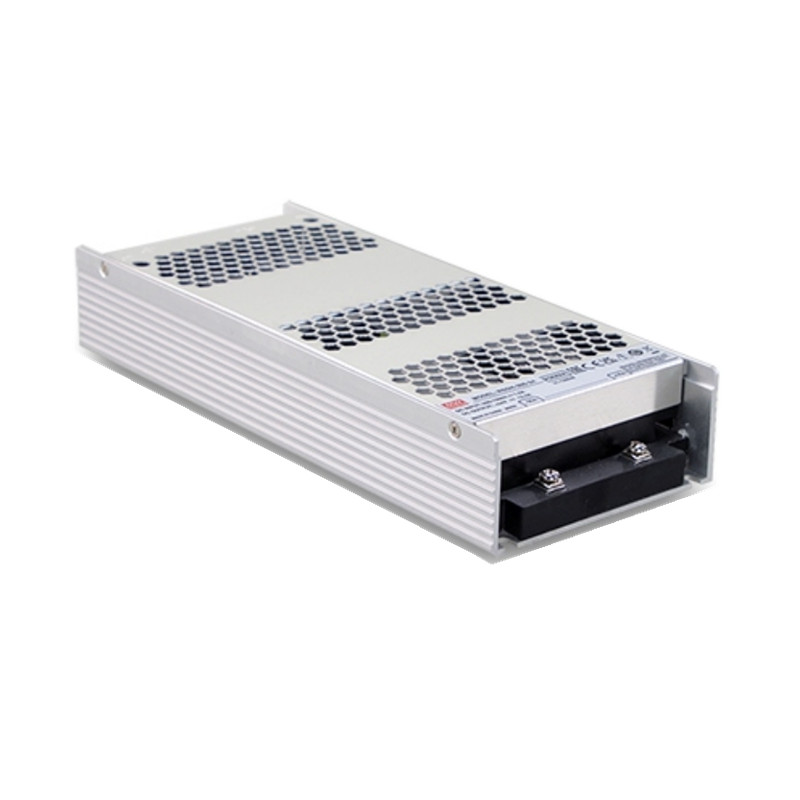

RSDH-300

RSDH-300
Wattage:
150W~300W
Function Characteristics

250~ 1500Vdc 6:1 ultra-wide input range

4KVac l/O high isolation

(Reinforced isolation)

Fanless design, half encapsulated, cooling by free air convection

-40~+80oC ultra-wide operating temperature ( > +55oC derating)

1U low profile (41mm)

Model information
Model:
RSDH-300-spec / RSDH-300-12 / RSDH-300-24 / RSDH-300-32 / RSDH-300-48 / CSA Certificate-1 / DEKRA Certificate / EAC Certificate / CB Certificate-1 / EMC Certificate / CE Declaration / UK Declaration / RSDH-300-3D /

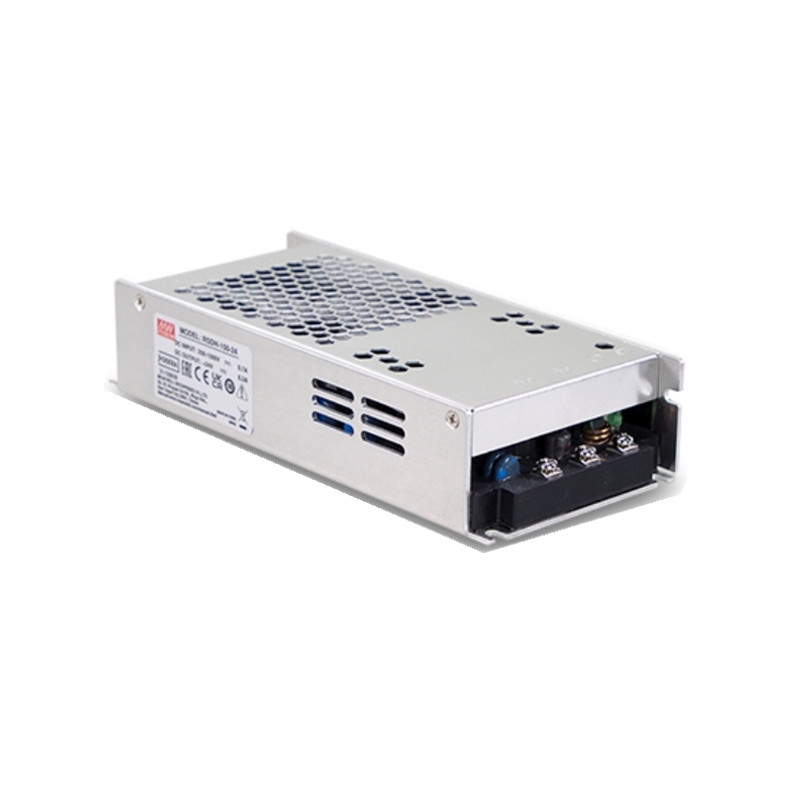

RSDH-150

RSDH-150
Wattage:
150W~300W
Function Characteristics

250~ 1500Vdc 6:1 ultra-wide input range

4KVac l/O high isolation

(Reinforced isolation)

Fanless design, half encapsulated, cooling by free air convection

-40~+80oC ultra-wide operating temperature ( > +55oC derating)

1U low profile (41mm)

Model information
Model:
RSDH-150-spec / RSDH-150-12 / RSDH-150-24 / RSDH-150-32 / RSDH-150-48 / CSA Certificate / DEKRA Certificate / EAC Certificate / CB Certificate / EMC Certificate / CE Declaration / UK Declaration / RSDH-150-3D / RSDH-150-3D /
