Products > DC/DC

RSD-30

RSD-30
Wattage:
30W~500W
Function Characteristics

Compliance with EN50155 and EN45545-2 railway standard

2:1 or 4:1 wide input range

Isolation: 4000VDC

1U low profile

Half encapsulated

Model information
Model:
RSD-30-spec / RSD-30G-3.3 / RSD-30G-5 / RSD-30G-12 / RSD-30G-24 / RSD-30H-3.3 / RSD-30H-5 / RSD-30H-12 / RSD-30H-24 / RSD-30L-3.3-rpt / RSD-30L-5 / RSD-30L-12 / RSD-30L-24 / Railway Certificate / CB Certificate_UL / UL Certificate_62368 / EMC Certificate / CE Declaration / UK Declaration / EAC Certificate / RSD-30-3D /

RSDH-300

RSDH-300
Wattage:
150W~300W
Function Characteristics

250~ 1500Vdc 6:1 ultra-wide input range

4KVac l/O high isolation

(Reinforced isolation)

Fanless design, half encapsulated, cooling by free air convection

-40~+80oC ultra-wide operating temperature ( > +55oC derating)

1U low profile (41mm)

Model information
Model:
RSDH-300-spec / RSDH-300-12 / RSDH-300-24 / RSDH-300-32 / RSDH-300-48 / CSA Certificate-1 / DEKRA Certificate / EAC Certificate / CB Certificate-1 / EMC Certificate / CE Declaration / UK Declaration / RSDH-300-3D /

RSDH-150

RSDH-150
Wattage:
150W~300W
Function Characteristics

250~ 1500Vdc 6:1 ultra-wide input range

4KVac l/O high isolation

(Reinforced isolation)

Fanless design, half encapsulated, cooling by free air convection

-40~+80oC ultra-wide operating temperature ( > +55oC derating)

1U low profile (41mm)

Model information
Model:
RSDH-150-spec / RSDH-150-12 / RSDH-150-24 / RSDH-150-32 / RSDH-150-48 / CSA Certificate / DEKRA Certificate / EAC Certificate / CB Certificate / EMC Certificate / CE Declaration / UK Declaration / RSDH-150-3D / RSDH-150-3D /

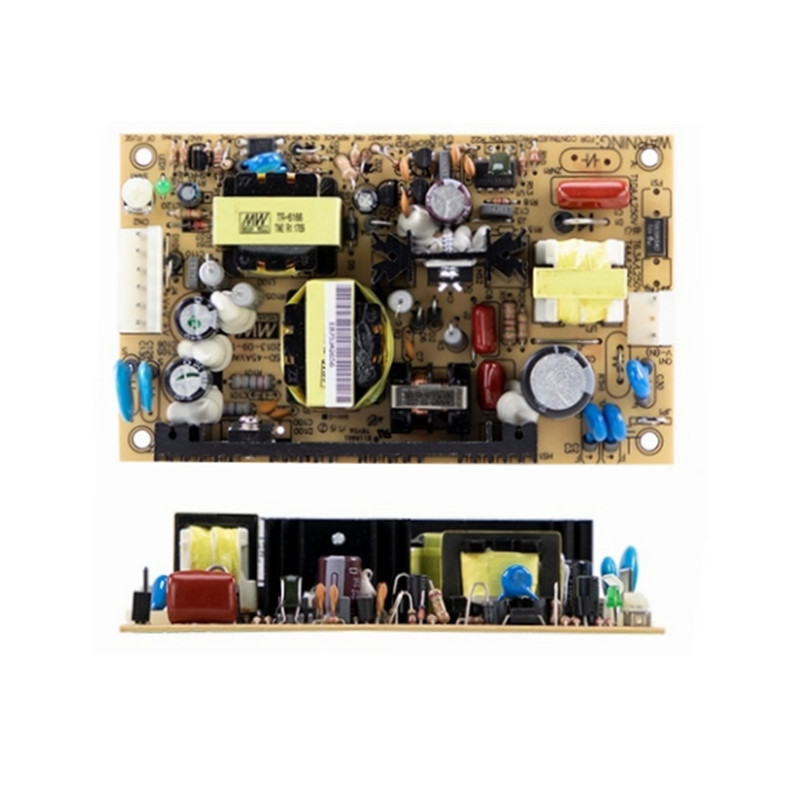

PSD-45

PSD-45
Wattage:
5W~45W
Function Characteristics

2:1 wide input range

1.5~2KVAC isolation by models

Model information
Model:
PSD-45-SPEC / PSD-45A-12 / PSD-45A-24 / PSD-45A-5 / PSD-45B-12 / PSD-45B-24 / PSD-45B-5 / PSD-45C-12 / PSD-45C-24 / PSD-45C-5 / TUV Certificate / EAC Certificate-5 / CB Certificate_TUV / EMC Certificate / CE Declaration / UK Declaration / PSD-45-3D /

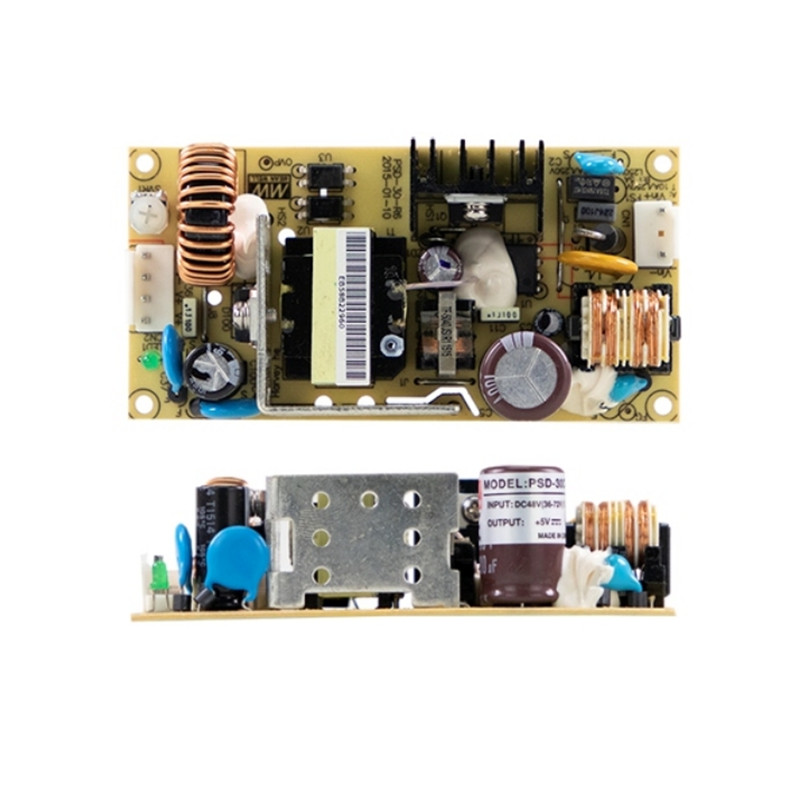

PSD-30

PSD-30
Wattage:
5W~45W
Function Characteristics

2:1 wide input range

1.5~2KVAC isolation by models

Model information
Model:
PSD-30-SPEC / PSD-30A-12 / PSD-30A-24 / PSD-30A-5 / PSD-30B-12 / PSD-30B-24 / PSD-30B-5 / PSD-30C-12 / PSD-30C-24 / PSD-30C-5 / CB Certificate-2 / EAC Certificate-5 / EMC Certificate / CE Declaration / UK Declaration / PSD-30-3D /

PSD-15

PSD-15
Wattage:
5W~45W
Function Characteristics

2:1 wide input range

1.5~2KVAC isolation by models

Model information
Model:
PSD-15-SPEC / PSD-15A-12 / PSD-15A-24 / PSD-15A-5 / PSD-15B-12 / PSD-15B-24 / PSD-15B-5 / PSD-15C-12 / PSD-15C-24 / PSD-15C-5 / EAC Certificate / EMC Certificate / CE Declaration / UK Declaration-17 / PSD-15-3D /

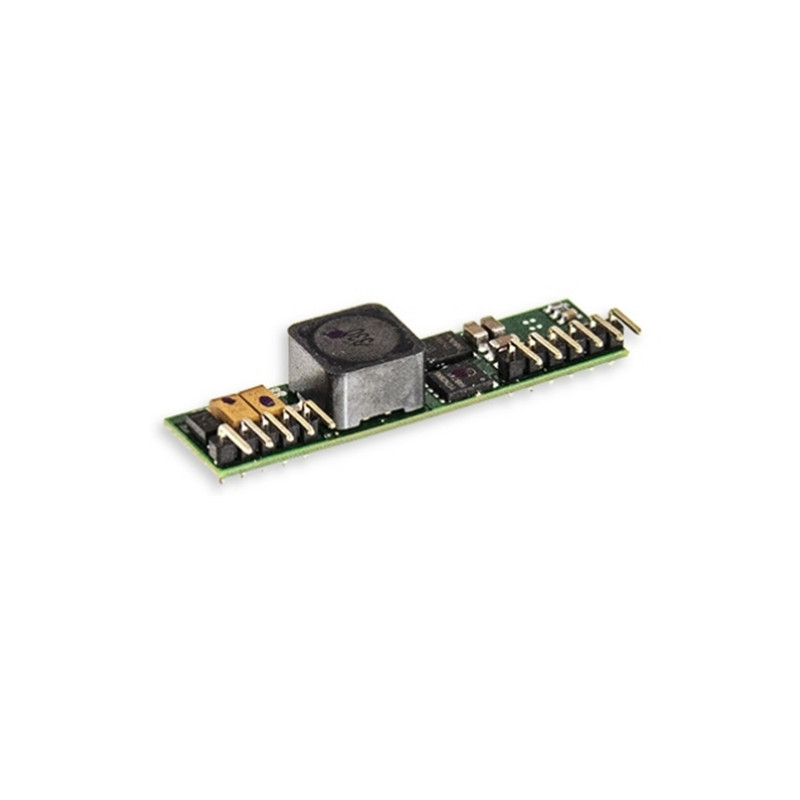

NID35

NID35
Wattage:
30W~100W
Function Characteristics

3:1 wide input range

High efficiency up to 97%

Built-in remote ON/OFF control

Economical open frame design

Model information
Model:
NID35-spec / NID35-05 / NID35-12 / NID35-15 / NID35-24 / EAC Certificate / EMC Declaration / CE Declaration / UK Declaration / NID35-3D /

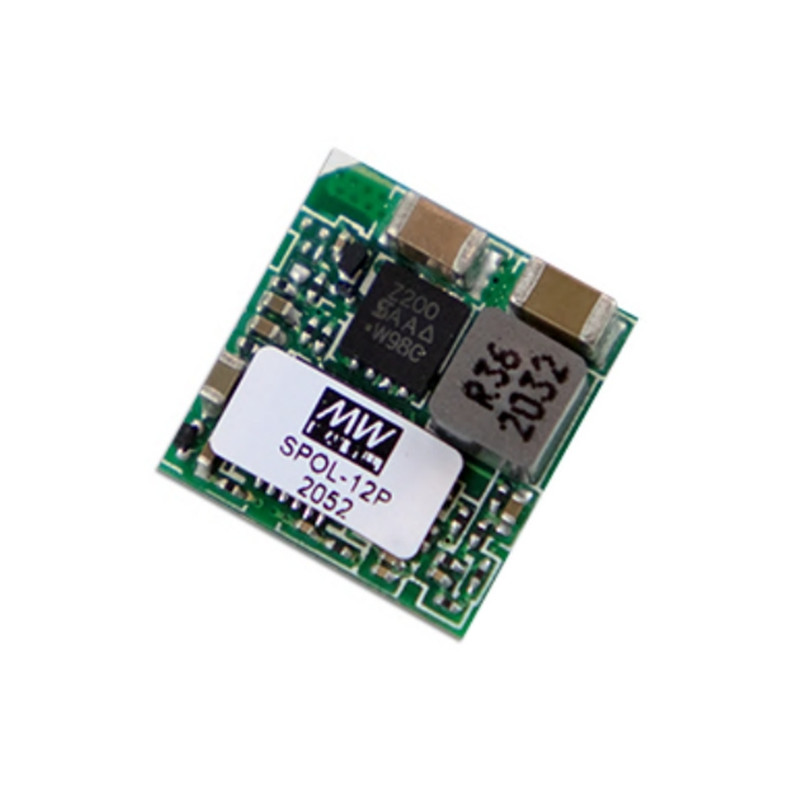

SPOL-12

SPOL-12
Wattage:
5.5W~66W
Function Characteristics

Land Grid Array (LGA) surface mount

Ultra compact size (SPOL-01 : 12.4 x 12.4 x 4mm, SOPL-12 : 12.19 x 12.19 x 3.1mm)

Wide input range (SPOL-01 : 3~14Vdc、SPOL-12 : 3~14.4Vdc)

Programmable output voltage (SPOL-01 : 0.9~5.5Vdc、SPOL-12 : 0.6~5.5Vdc)

Remote ON/OFF control

Protection : Short (Continuous)

Ultra-wide working temperature(SPOL-01 : -40~+82oC, SPOL-12 : -40~+90oC)

3 years warranty

Model information
Model:
SPOL-12-spec / EAC Certificate-5 / CE Declaration / UK Declaration /

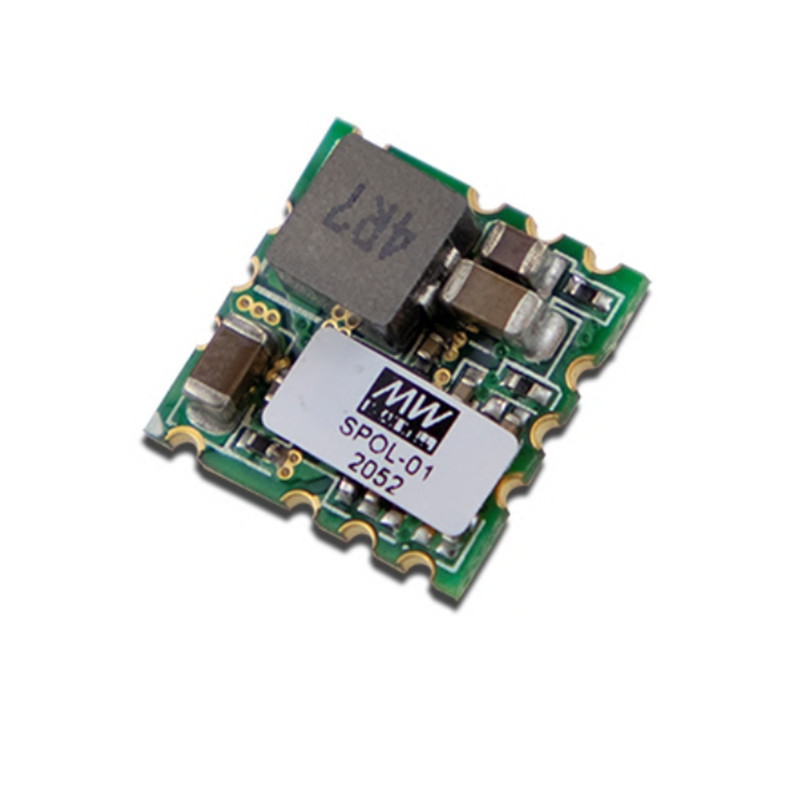

SPOL-01

SPOL-01
Wattage:
5.5W~66W
Function Characteristics

Land Grid Array (LGA) surface mount

Ultra compact size (SPOL-01 : 12.4 x 12.4 x 4mm, SOPL-12 : 12.19 x 12.19 x 3.1mm)

Wide input range (SPOL-01 : 3~14Vdc、SPOL-12 : 3~14.4Vdc)

Programmable output voltage (SPOL-01 : 0.9~5.5Vdc、SPOL-12 : 0.6~5.5Vdc)

Remote ON/OFF control

Protection : Short (Continuous)

Ultra-wide working temperature(SPOL-01 : -40~+82oC, SPOL-12 : -40~+90oC)

3 years warranty

Model information
Model:
SPOL-01-spec / EAC Certificate / CE Declaration / UK Declaration /

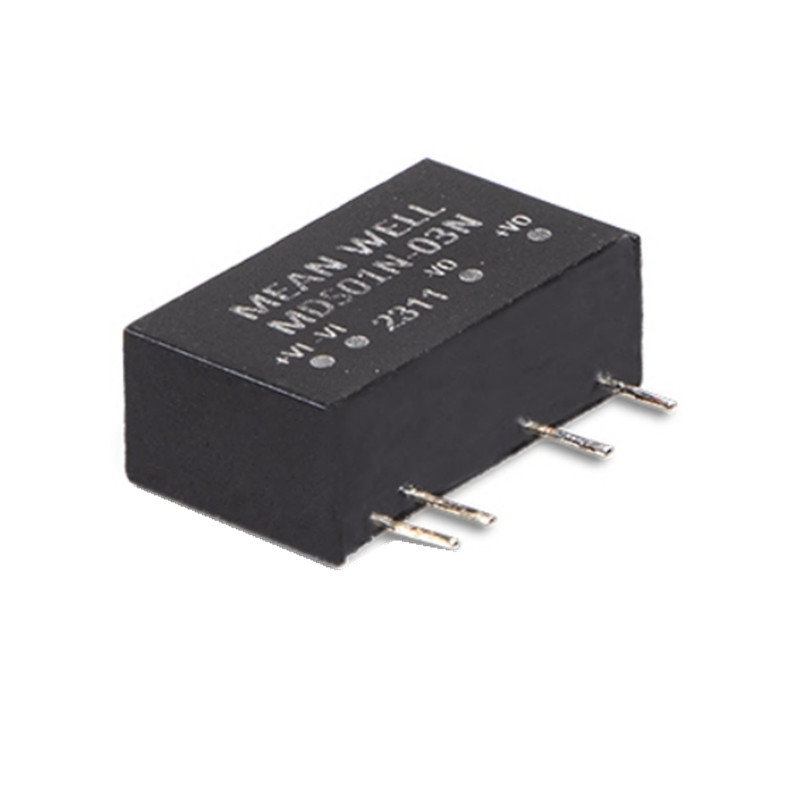

MDS01-N

MDS01-N
Wattage:
1W~6W
Function Characteristics

Module Type Selection Guide

SIP7 package with international standard pinout(1~2W); DIP24 package with international standard pinout (3~6W)

Operating temperature range -40~ +90°C

Medical safety approved (1xMOPP/2xMOOP) according to ANSI AAMI ES60601-1

Low patient leakage current <2μA (1~2W);  Low patient leakage current <5μA (3~6W)

Protection: Short circuit(3 second max.) / Overload (3~6W)

3 years warranty

Model information
Model:
MDS01-N-spec / MDS01L-03N / MDS01L-05N / MDS01L-12N / MDS01L-15N / MDS01M-03N / MDS01M-05N / MDS01M-12N / MDS01M-15N / MDS01N-03N / MDS01N-05N / MDS01N-12N / MDS01N-15N / LVD Certificate / UL Certificate / CB Certificate / EMC Certificate / CE Declaration / UK Declaration / MDS01-N-3D /

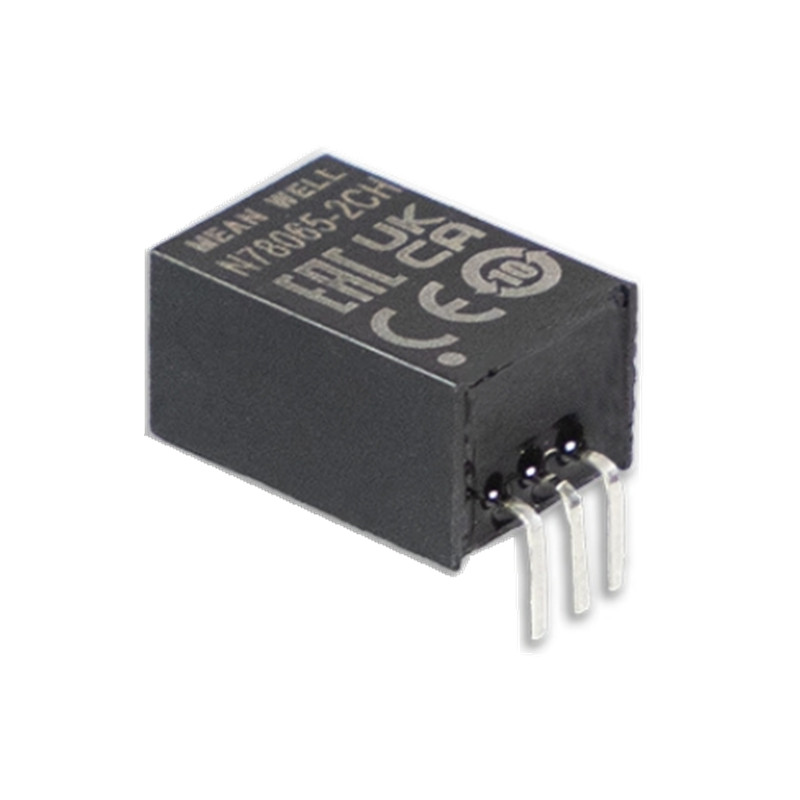

N78-2

N78-2
Wattage:
3.3W~15W
Function Characteristics

Pin-out compatible with LM78xx / LM79xx linear regulators

High efficiency up to 96%, no heatsink required

Wide input range up to 36V (N78-2: 32V)

Support negative output

Operating temperature range -40 ~ +85oC

Comply to BS EN/EN55032 radiated Class B without additional components

Protection: Short circuit / Overload / Over temperature

3 years warranty

Model information
Model:
N78-2-spec / N7803-2 / N7805-2 / N7809-2 / N7812-2 / N7815-2 / N78018-2 / N78025-2 / N78065-2 / EAC RoHS Certificate / EMC Certificate / CE Declaration / UK Declaration / UK Declaration / N78-2-3D /

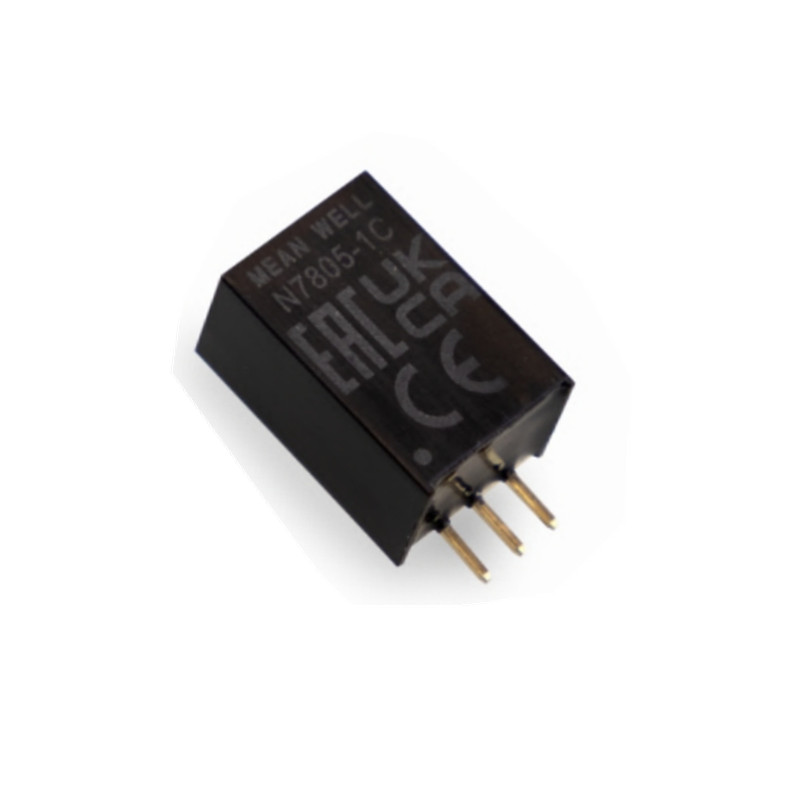

N78

N78
Wattage:
3.3W~15W
Function Characteristics

Pin-out compatible with LM78xx / LM79xx linear regulators

High efficiency up to 96%, no heatsink required

Wide input range up to 36V (N78-2: 32V)

Support negative output

Operating temperature range -40 ~ +85oC

Comply to BS EN/EN55032 radiated Class B without additional components

Protection: Short circuit / Overload / Over temperature

3 years warranty

Model information
Model:
N78-spec / N7803 / N7805 / N7809 / N7812 / N7815 / EAC Certificate / EMC Certificate / CE Declaration / UK Declaration /

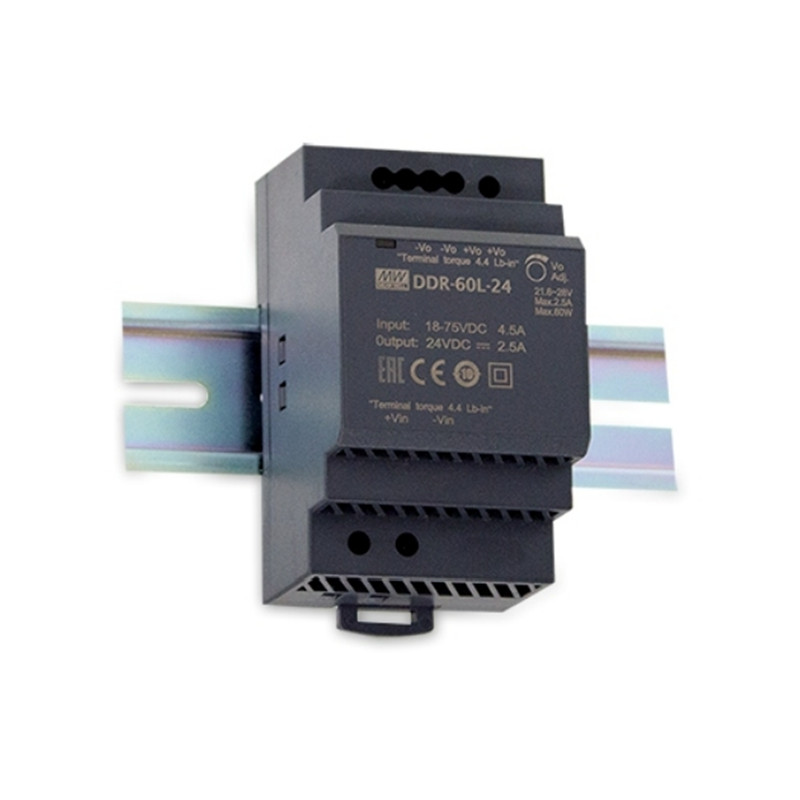

DDR-60

DDR-60
Wattage:
15W~480W
Function Characteristics

2:1 or 4:1 wide input range

Fanless design, cooling by free air convection

Protections: short circuit / overload / over voltage / input reverse polarity / input under voltage

LED power indicator

Suitable for DIN rail types: TS-35/7.5 or TS-35/15

4KVdc I/O isolation (reinforced isolation)

Ultra slim dimensions

3 years warranty

Model information
Model:
DDR-60-spec / DDR-60G-5-rpt / DDR-60G-12 / DDR-60G-15 / DDR-60G-24 / DDR-60L-5 / DDR-60L-12 / DDR-60L-15 / DDR-60L-24 / CB Certificate_UL / UL Certificate_62368 / EAC Certificate / EMC Certificate / CE Declaration / UK Declaration-11 / DDR-60-3D /

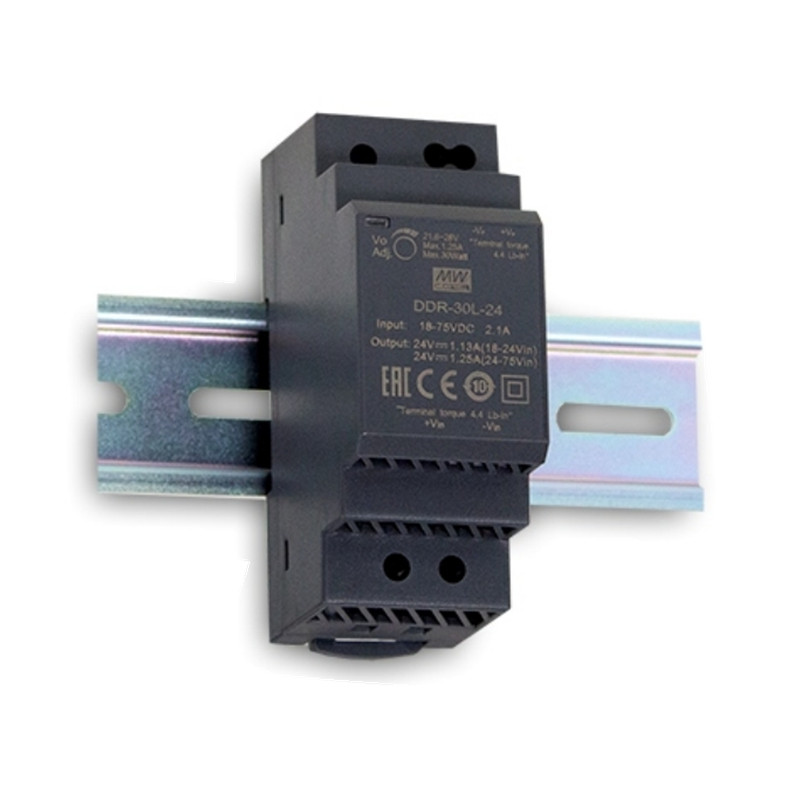

DDR-30

DDR-30
Wattage:
15W~480W
Function Characteristics

2:1 or 4:1 wide input range

Fanless design, cooling by free air convection

Protections: short circuit / overload / over voltage / input reverse polarity / input under voltage

LED power indicator

Suitable for DIN rail types: TS-35/7.5 or TS-35/15

4KVdc I/O isolation (reinforced isolation)

Ultra slim dimensions

3 years warranty

Model information
Model:
DDR-30-spec / DDR-30G-5 / DDR-30G-12 / DDR-30G-15 / DDR-30G-24 / DDR-30L-5 / DDR-30L-12 / DDR-30L-15 / DDR-30L-24 / UL Certificate_62368 / DDR-30-CB(UL)-cer / EAC Certificate / EMC Certificate / CE Declaration / UK Declaration / DDR-30-3D /

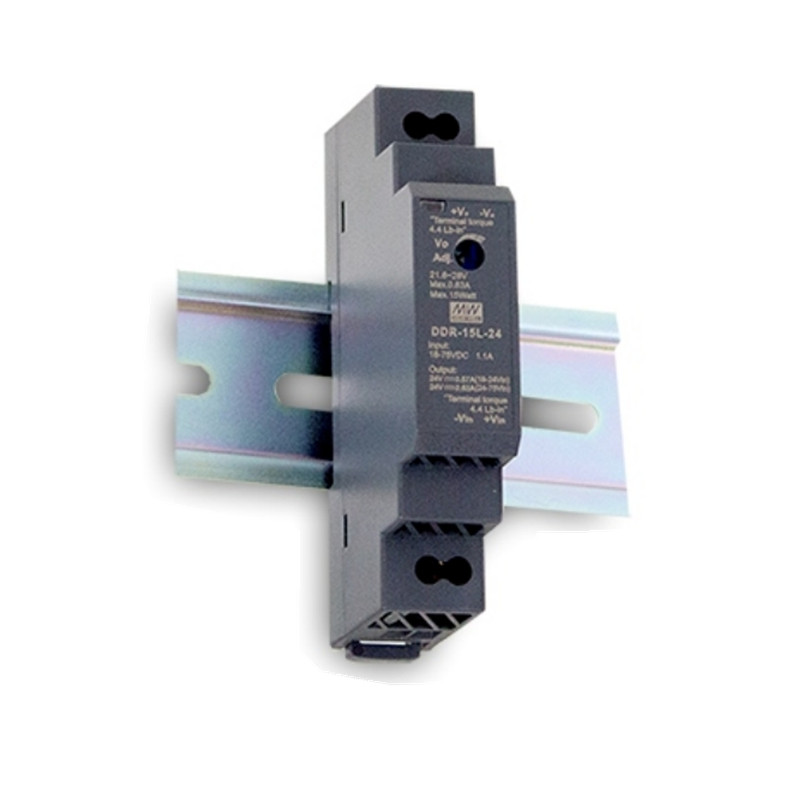

DDR-15

DDR-15
Wattage:
15W~480W
Function Characteristics

2:1 or 4:1 wide input range

Fanless design, cooling by free air convection

Protections: short circuit / overload / over voltage / input reverse polarity / input under voltage

LED power indicator

Suitable for DIN rail types: TS-35/7.5 or TS-35/15

4KVdc I/O isolation (reinforced isolation)

Ultra slim dimensions

3 years warranty

Model information
Model:
DDR-15-spec / DDR-15G-3.3 / DDR-15G-5 / DDR-15G-12 / DDR-15G-15 / DDR-15G-24 / DDR-15L-3.3 / DDR-15L-5 / DDR-15L-12 / DDR-15L-15 / DDR-15L-24 / UL Certificate_62368 / EAC Certificate / CB Certificate_UL / EMC Certificate / CE Declaration / UK Declaration / HDR-15-3D /
